Examples of User Management Common Tasks

This section provides a set of common tasks related to the user management of both system administrations and general end users, to set up unique users for your system.

Configure OIDC/LDAP Authentication for Kubernetes User Authentication

After installing StarlingX, you should configure OIDC/LDAP authentication for kubernetes access user authentication.

OIDC/LDAP authentication can be supported by StarlingX’s local LDAP server and/or up to three remote LDAP servers (for example, Windows Active Directory).

In this example, OIDC/LDAP authentication is setup for local LDAP.

Prerequisites

  • You must have the credentials for the ‘sysadmin’ local Linux user account used for installation.

Procedure

  1. Login to the active controller as the ‘sysadmin’ user.

    Use either a local console or SSH.

  2. Setup ‘sysadmin’ credentials.

    $ source /etc/platform/openrc

  3. Configure Kubernetes for OIDC token validation.

    Use the default nodePort for the oidc-auth-apps system application of 30556.

    $ OAMIP=$(system oam-show | egrep "(oam_ip|oam_floating_ip)" | awk '{print $4}')

$ system service-parameter-add kubernetes kube_apiserver oidc-client-id=stx-oidc-client-app

$ system service-parameter-add kubernetes kube_apiserver oidc-groups-claim=groups

$ system service-parameter-add kubernetes kube_apiserver oidc-issuer-url=https://${OAMIP}:30556/dex

$ system service-parameter-add kubernetes kube_apiserver oidc-username-claim=email

$ system service-parameter-apply kubernetes

  4. Configure and apply the oidc-auth-apps system application.

    1. Create the certificate to be used by both the OIDC client and the OIDC identity provider.

      $ mkdir /home/sysadmin/oidc

$ OAMIP=$(system oam-show | egrep "(oam_ip|oam_floating_ip)" |
awk '{print $4}')

$ cat <<EOF > /home/sysadmin/oidc/oidc-auth-apps-certificate.yaml
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
   name: oidc-auth-apps-certificate
   namespace: kube-system
spec:
   secretName: oidc-auth-apps-certificate
   duration: 2160h # 90 days
   renewBefore: 360h # 15 days
   issuerRef:
      name: system-local-ca
      kind: ClusterIssuer
   commonName: ${OAMIP}
   subject:
      organizations:
         - ABC-Company
      organizationalUnits:
         - StarlingX-system-oidc-auth-apps
   ipAddresses:
   - ${OAMIP}
EOF

$ kubectl apply -f/home/sysadmin/oidc/oidc-auth-apps-certificate.yaml

    2. Configure the OIDC-client with the OIDC client certificate and OIDC identity server certificate (created in the Create the certificate to be used by both the OIDC client and the OIDC identity provider step) and the Trusted CA that you used to sign these certificates (i.e., the system-local-ca).

      $ kubectl get secret system-local-ca -n cert-manager -o=jsonpath='{.data.ca\.crt}' | base64 --decode > /home/sysadmin/oidc/dex-ca-cert.crt

$ kubectl create secret generic dex-ca-cert --from-file=/home/sysadmin/oidc/dex-ca-cert.crt  -n kube-system

$ cat <<EOF > /home/sysadmin/oidc/oidc-client-overrides.yaml
tlsName: oidc-auth-apps-certificate
config:
   # The |OIDC|-client container mounts the dex-ca-cert secret at /home, therefore
   # issuer_root_ca: /home/<filename-only-of-generic-secret>
   issuer_root_ca: /home/dex-ca-cert.crt
   issuer_root_ca_secret: dex-ca-cert
   # secret for accessing dex
   client_secret: stx-oidc-client-p@ssw0rd
EOF

$ system helm-override-update oidc-auth-apps oidc-client kube-system --values /home/sysadmin/oidc/oidc-client-overrides.yaml

    3. Configure the secret observer to track renewals of certificates.

      $ cat <<EOF > /home/sysadmin/oidc/secret-observer-overrides.yaml
cronSchedule: "*/15 * * * *"
observedSecrets:
   - secretName: "dex-ca-cert"
   filename: "dex-ca-cert.crt"
   deploymentToRestart: "stx-oidc-client"
   - secretName: "oidc-auth-apps-certificate"
   filename: "tls.crt"
   deploymentToRestart: "stx-oidc-client"
   - secretName: "oidc-auth-apps-certificate"
   filename: "tls.crt"
   deploymentToRestart: "oidc-dex"
EOF

$ system helm-override-update oidc-auth-apps secret-observer kube-system --values /home/sysadmin/oidc/secret-observer-overrides.yaml

    4. Create a secret with the certificate of the CA that signed the certificate of local LDAP, i.e., system-local-ca, to be used in the Specify the configuration for connecting to Local LDAP in the user overrides for the oidc-auth-apps application step.

      $ kubectl get secret system-local-ca -n cert-manager -o=jsonpath='{.data.ca\.crt}' | base64 --decode > /home/sysadmin/oidc/local-ldap-ca-cert.crt

$ kubectl create secret generic local-ldap-ca-cert --from-file=/home/sysadmin/oidc/local-ldap-ca-cert.crt -n kube-system

    5. Specify the configuration for connecting to local LDAP in the user overrides for the oidc-auth-apps application.

      $ OAMIP=$(system oam-show | egrep "(oam_ip|oam_floating_ip)" | awk '{print $4}')

$ MGMTIP=$(system addrpool-list --nowrap | fgrep management |  awk '{print $14}')

$ BINDPW=$(keyring get ldap ldapadmin)

$ cat <<EOF > /home/sysadmin/oidc/dex-overrides.yaml
config:
   staticClients:
   - id: stx-oidc-client-app
      name: STX OIDC Client app
      redirectURIs: ['https://${OAMIP}:30555/callback']
      secret: stx-oidc-client-p@ssw0rd
   expiry:
      idTokens: "10h"
   connectors:
   - type: ldap
      name: LocalLDAP
      id: localldap-1
      config:
         host: ${MGMTIP}:636
         rootCA: /etc/ssl/certs/adcert/local-ldap-ca-cert.crt
         insecureNoSSL: false
         insecureSkipVerify: false
         bindDN: CN=ldapadmin,DC=cgcs,DC=local
         bindPW: ${BINDPW}
         usernamePrompt: Username
         userSearch:
            baseDN: ou=People,dc=cgcs,dc=local
            filter: "(objectClass=posixAccount)"
            username: uid
            idAttr: DN
            emailAttr: uid
            nameAttr: gecos
         groupSearch:
            baseDN: ou=Group,dc=cgcs,dc=local
            filter: "(objectClass=posixGroup)"
            userMatchers:
            - userAttr: uid
               groupAttr: memberUid
            nameAttr: cn
volumeMounts:
- mountPath: /etc/ssl/certs/adcert
   name: certdir
- mountPath: /etc/dex/tls
   name: https-tls
volumes:
- name: certdir
   secret:
      secretName: local-ldap-ca-cert
- name: https-tls
   secret:
      defaultMode: 420
      secretName: oidc-auth-apps-certificate
EOF

$ system helm-override-update oidc-auth-apps dex kube-system --values /home/sysadmin/oidc/dex-overrides.yaml

    6. Apply the oidc-auth-apps system application.

      $ system application-apply oidc-auth-apps

    7. Wait for the oidc-auth-apps system application to reach the ‘applied’ status.

      $ system application-list

Postrequisites

See Create First System Administrator.

Create First System Administrator

After installing StarlingX, you should create your first unique system administrator account.

In this example, a local LDAP user account and a local Keystone user account are created for the first system administrator user.

The first system administrator user must have full ‘admin’ privileges such that it can create subsequent system administrators and end users.

Prerequisites

  • You must have the credentials for the ‘sysadmin’ local Linux user account used for the installation.

Procedure

  1. Login to the active controller as the ‘sysadmin’ user.

    Use either a local console or SSH.

  2. Apply source credentials for the ‘admin’ keystone user.

    $ source /etc/platform/openrc

  3. Create a directory for temporary files for setting up users and groups.

    $ mkdir /home/sysadmin/users

  4. Create a new local LDAP group for system administrators with full privileges.

    $ sudo ldapaddgroup Level1SystemAdmin

    1. Add full Linux authorization privileges to the Level1SystemAdmin LDAP group members.

      Enable pam_group.so in /etc/pam.d/common-auth, and update /etc/security/group.conf with LDAP group mappings.

      Note

      If it is AIO-DX controller configuration, add full Linux authorization privileges on both controllers.

      # Execute this line only once, on each host
$ sudo sed -i '1i auth required pam_group.so use_first_pass' /etc/pam.d/common-auth

# Execute this line for each LDAP group being mapped to 1 or more local Linux groups, on each host
$ sudo sed -i '$ a\*;*;%Level1SystemAdmin;Al0000-2400;sys_protected,root,sudo' /etc/security/group.conf

    2. Add full kubernetes authorization privileges to the Level1SystemAdmin LDAP group members.

      Add a kubernetes ClusterRoleBinding to bind the Level1SystemAdmin group to the cluster-admin role.

      $ cat << EOF > /home/sysadmin/users/Level1SystemAdmin-clusterrolebinding.yml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
   name: Level1SystemAdmin
subjects:
  - kind: Group
    name: Level1SystemAdmin
    apiGroup: rbac.authorization.k8s.io
roleRef:
   kind: ClusterRole
   name: cluster-admin
   apiGroup: rbac.authorization.k8s.io
EOF

$ kubectl apply -f /home/sysadmin/users/Level1SystemAdmin-clusterrolebinding.yml

  5. Create a new local LDAP user for the first system administrator.

    $ sudo ldapusersetup -u joefulladmin
Password:
Successfully added user joefulladmin to LDAP
Successfully set password for user joefulladmin
Warning : password is reset, user will be asked to change password at login
Successfully modified user entry uid=joefulladmin,ou=People,dc=cgcs,dc=local in LDAP
Updating password expiry to 90 days
Successfully modified user entry uid=joefulladmin,ou=People,dc=cgcs,dc=local in LDAP
Updating password expiry to 2 days

  6. Add the first system administrator to the Level1SystemAdmin group.

    $ sudo ldapaddusertogroup joefulladmin Level1SystemAdmin

  7. Add a new local keystone user for the first system administrator using the same username.

    Create a keystone user in the ‘admin’ project. The StarlingX infrastructure resources are all contained in the ‘admin’ project.

    $ USERNAME="joefulladmin"
$ USERPASSWORD="<password>"
$ PROJECTNAME="admin"
$ PROJECTID=$(openstack project list | grep "${PROJECTNAME}" | awk '{print $2}')
$ openstack user create --password "${USERPASSWORD}" --project ${PROJECTID} "${USERNAME}"
$ openstack role add --project ${PROJECTNAME} --user ${USERNAME} member

    1. Add full StarlingX authorization privileges to the first system administrator’s keystone user account.

      $ openstack role add --project ${PROJECTNAME} --user ${USERNAME} admin

  8. Logout as ‘sysadmin’.

    $ exit

Postrequisites

System Administrator - Test Local Access using SSH/Linux Shell and System and Kubernetes CLI

After installing your first system administrator, with full privileges, test access to Linux, StarlingX and Kubernetes commands and resources.

Prerequisites

  • You must have created your first system administrator;

  • You need to perform this procedure using the first system administrator.

Procedure

  1. Login to active controller as the first system administrator, joefulladmin in these examples.

    Use either local console or SSH.

    Note

    If this is the first time logging in with your Local LDAP account, the password configured is your username. You will be forced to update your password.

  2. Test access to linux commands (admin and non-admin).

    # Creating user requires sudo

$ sudo ldapusersetup -u johnsmith
Successfully added user johnsmith to LDAP
Successfully set password for user johnsmith
Warning : password is reset, user will be asked to change password at login
Successfully modified user entry uid=johnsmith,ou=People,dc=cgcs,dc=local in LDAP
Updating password expiry to 90 days
Successfully modified user entry uid=johnsmith,ou=People,dc=cgcs,dc=local in LDAP
Updating password expiry to 2 days

# Listing IP interfaces does not require admin privileges

$ ip link show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
   link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: enp0s3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP mode DEFAULT group default qlen 1000
   link/ether 08:00:27:39:06:4e brd ff:ff:ff:ff:ff:ff
3: enp0s8: <BROADCAST,MULTICAST> mtu 1500 qdisc fq_codel state DOWN mode DEFAULT group default qlen 1000
   link/ether 08:00:27:38:8b:7c brd ff:ff:ff:ff:ff:ff
...

  3. Test access to Kubernetes commands / resources.

    1. Use kubeconfig-setup to setup KUBECONFIG for local environment.

      $ kubeconfig-setup
$ source ~/.profile

    2. Use oidc-auth to authenticate via OIDC/LDAP.

      $ oidc-auth
Using "joefulladmin" as username.
Password:
Successful authentication.
Updated /home/joefulladmin/.kube/config .

    3. Use kubectl to test access to kubernetes commands / resources (admin and non-admin).

      # Displaying anything in 'kube-system' namespace requires 'cluster-admin' privileges
$ kubectl -n kube-system get secrets
NAME                        TYPE                    DATA  AGE
ceph-admin                  Opaque                  2     3d8h
ceph-pool-kube-cephfs-data  kubernetes.io/cephfs    4     3d8h
ceph-pool-kube-rbd          kubernetes.io/rbd       2     3d8h


# Anyone can display resources in 'default' namespace
$ kubectl -n default get all
NAME                TYPE       CLUSTER-IP  EXTERNAL-IP  PORT(S)  AGE
service/kubernetes  ClusterIP  10.96.0.1   <none>       443/TCP  3d9h

  4. Test access to StarlingX commands / resources.

    1. Use local_starlingxrc to setup StarlingX environment variables and to setup your keystone user’s authentication credentials.

      $ source local_starlingxrc
Enter the password to be used with Keystone user joefulladmin:
Created file /home/joefulladmin/joefulladmin-openrc

    2. Test keystone commands (admin and non-admin).

      # Making changes to the system requires 'admin' role
$ system modify -l Ottawa

+----------------------+--------------------------------------+
| Property             | Value                                |
+----------------------+--------------------------------------+
| contact              | None                                 |
| created_at           | 2024-07-12T10:52:40.609006+00:00     |
| description          | None                                 |
| https_enabled        | True                                 |
| latitude             | None                                 |
| location             | Ottawa                               |
| longitude            | None                                 |
...

# Any member of 'admin' project  can display system parameters
$ system host-if-list controller-0

+--------------------------------------+--------+----------+----------+---------+------------+----------+-------------+------------+
| uuid                                 | name   | class    | type     | vlan id | ports      | uses i/f | used by i/f | attributes |
+--------------------------------------+--------+----------+----------+---------+------------+----------+-------------+------------+
| 287eca5a-8721-4422-b73a-bf24805eac4c | enp0s3 | platform | ethernet | None    | ['enp0s3'] | []       | []          |  MTU=1500  |
| 325c32b9-fe40-4900-a0ff-59062190ce80 | lo     | platform | virtual  | None    | []         | []       | []           | MTU=1500  |
+--------------------------------------+--------+----------+----------+---------+------------+----------+-------------+------------+

Postrequisites

Continue to Create other System Administrators.

Create Other System Administrators

After setting up your first system administrator, use this first system administrator to configure other system administrators.

In the following example, creating other system administrators consists of:

  • Create system administrator groups with different privilege levels.

    • The Level1SystemAdmin group with full privileges (including sudo) has already been created, when creating the first system administrator.

    • Create a Level2SystemAdmin group with full privileges, with no linux sudo capability.

    • Create a Level3SystemAdmin group with read-only privileges.

  • Create one or more new system administrator users in each of the above groups.

    • For each user, create both:

      • a local LDAP user account.

      • a keystone user account.

Prerequisites

  • You need to use the first system administrator created to execute this procedure.

Procedure

  1. Login to the active controller as the first system administrator, joefulladmin in this example.

    Use either a local console or SSH.

  2. Use the local_starlingxrc to setup StarlingX environment variables and to setup the keystone user’s authentication credentials.

    $ source local_starlingxrc
Enter the password to be used with keystone user joefulladmin:
Created file /home/joefulladmin/joefulladmin-openrc

  3. Use the oidc-auth to authenticate via OIDC/LDAP for kubernetes CLI.

    $ oidc-auth
Using "joefulladmin" as username.
Password:
Successful authentication.
Updated /home/joefulladmin/.kube/config .

  4. Set up additional system admin groups with different privileges.

    Create a directory for temporary files for setting up users and groups.

    $ mkdir /home/joefulladmin/users

    1. Create a new local LDAP group with full privilege (but without linux sudo capability) for the system administrator.

      $ sudo ldapaddgroup Level2SystemAdmin

      1. Add full Linux authorization privileges (but without linux ‘sudo’ capability) to the Level2SystemAdmin LDAP group members.

        Update the /etc/security/group.conf with LDAP group mappings.

        Note

        For a AIO-DX controller configuration, this step must be done on both controllers.

        $ sudo sed -i '$ a\*;*;%Level2SystemAdmin;Al0000-2400;sys_protected,root' /etc/security/group.conf

      2. Add restricted kubernetes authorization privileges to the Level2SystemAdmin LDAP group members.

        Add a kubernetes ClusterRole and kubernetes ClusterRoleBinding to bind the Level2SystemAdmin group to a more restricted set of kubernetes capabilities.

        $ cat << EOF > /home/joefulladmin/users/Level2SystemAdmin-clusterrolebinding.yml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
   name: Level2SystemAdmin
rules:
# For the core API group (""), allow full access to all resource types
# EXCEPT for serviceaccounts and resource policies (limitranges and resourcequotas) only allow read access
-     apiGroups: [""]
   resources: ["bindings", "configmaps", "endpoints", "events", "persistentvolumeclaims", "pods", "podtemplates", "replicationcontrollers", "secrets", "services"]
   verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]
-     apiGroups: [""]
   resources: [ "serviceaccounts", "limitranges", "resourcequotas" ]
   verbs: ["get", "list"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
   name: Level2SystemAdmin
subjects:
-     kind: Group
   name: Level2SystemAdmin
   apiGroup: rbac.authorization.k8s.io
roleRef:
   kind: ClusterRole
   name: Level2SystemAdmin
   apiGroup: rbac.authorization.k8s.io
EOF

$ kubectl apply -f /home/joefulladmin/users/Level2SystemAdmin-clusterrolebinding.yml

      3. ‘admin’ StarlingX Authorization Privileges will be given to the Level2SystemAdmin LDAP Group members, when they are created in a subsequent step.

    2. Create a new local LDAP group for read-only system administrators.

      $ sudo ldapaddgroup Level3SystemAdmin

      1. Do not add additional linux authorization privileges to the Level3SystemAdmin LDAP group members.

        Update /etc/security/group.conf with LDAP group mappings.

        Note

        For a AIO-DX controller configuration, this step must be done on both controllers.

        $ sudo sed -i '$ a\*;*;%Level3SystemAdmin;Al0000-2400;users' /etc/security/group.conf

      2. Add ‘reader’ Kubernetes authorization privileges to the Level3SystemAdmin LDAP group members.

        Add a kubernetes ClusterRole and kubernetes ClusterRoleBinding to bind the Level3SystemAdmin group to a reader only set of kubernetes capabilities.

        $ cat << EOF > /home/joefulladmin/users/Level3SystemAdmin-clusterrolebinding.yml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
   name: Level3SystemAdmin
rules:
-     apiGroups: [""] # "" indicates the core API group
   resources: ["*"]
   verbs: ["get", "watch", "list"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
   name: Level3SystemAdmin
subjects:
-     kind: Group
   name: Level3SystemAdmin
   apiGroup: rbac.authorization.k8s.io
roleRef:
   kind: ClusterRole
   name: Level3SystemAdmin
   apiGroup: rbac.authorization.k8s.io
EOF

$ kubectl apply -f /home/joefulladmin/users/Level3SystemAdmin-clusterrolebinding.yml

      3. The ‘reader’ StarlingX authorization privileges will be given to the Level3SystemAdmin LDAP group members, when they are created in a subsequent step.

  5. Create system ‘admin’ users in each of the 3 system admin groups.

    1. Create one or more users in the Level1SystemAdmin group and give each a keystone user account with an ‘admin’ role.

      $ sudo ldapusersetup -u davefulladmin
Password:
Successfully added user davefulladmin to LDAP
Successfully set password for user davefulladmin
Warning : password is reset, user will be asked to change password at login
Successfully modified user entry uid=davefulladmin,ou=People,dc=cgcs,dc=local in LDAP
Updating password expiry to 90 days
Successfully modified user entry uid=davefulladmin,ou=People,dc=cgcs,dc=local in LDAP
Updating password expiry to 2 days

$ sudo ldapaddusertogroup davefulladmin Level1SystemAdmin

$ USERNAME="davefulladmin"
$ USERPASSWORD="<password>"
$ PROJECTNAME="admin"
$ PROJECTID=`openstack project list | grep ${PROJECTNAME} | awk '{print $2}'`
$ openstack user create --password "${USERPASSWORD}" --project ${PROJECTID} "${USERNAME}"
$ openstack role add --project ${PROJECTNAME} --user ${USERNAME} _member_
$ openstack role add --project ${PROJECTNAME} --user ${USERNAME} admin

      Repeat this step for additional users required in the Level1SystemAdmin group.

    2. Create one or more users in the Level2SystemAdmin group and give each a keystone user account with an ‘admin’ role.

      $ sudo ldapusersetup -u jimbasicadmin
Password:
Successfully added user jimbasicadmin to LDAP
Successfully set password for user jimbasicadmin
Warning : password is reset, user will be asked to change password at login
Successfully modified user entry uid=jimbasicadmin,ou=People,dc=cgcs,dc=local in LDAP
Updating password expiry to 90 days
Successfully modified user entry uid=jimbasicadmin,ou=People,dc=cgcs,dc=local in LDAP
Updating password expiry to 2 days

$ sudo ldapaddusertogroup jimbasicadmin Level2SystemAdmin

$ USERNAME="jimbasicadmin"
$ USERPASSWORD="<password>"
$ PROJECTNAME="admin"
$ PROJECTID=`openstack project list | grep ${PROJECTNAME} | awk '{print $2}'`
$ openstack user create --password "${USERPASSWORD}" --project ${PROJECTID} "${USERNAME}"
$ openstack role add --project ${PROJECTNAME} --user ${USERNAME} _member_
$ openstack role add --project ${PROJECTNAME} --user ${USERNAME} admin

      Repeat this step for additional users required in the Level2SystemAdmin group.

    3. Create one or more users in the Level3SystemAdmin group and give each a keystone user account with ‘reader’ role.

      $ sudo ldapusersetup -u billreaderadmin
Password:
Successfully added user billreaderadmin to LDAP
Successfully set password for user billreaderadmin
Warning : password is reset, user will be asked to change password at login
Successfully modified user entry uid=billreaderadmin,ou=People,dc=cgcs,dc=local in LDAP
Updating password expiry to 90 days
Successfully modified user entry uid=billreaderadmin,ou=People,dc=cgcs,dc=local in LDAP
Updating password expiry to 2 days

$ sudo ldapaddusertogroup billreaderadmin Level3SystemAdmin

$ USERNAME="billreaderadmin"
$ USERPASSWORD="<password>"
$ PROJECTNAME="admin"
$ PROJECTID=`openstack project list | grep ${PROJECTNAME} | awk '{print $2}'`
$ openstack user create --password "${USERPASSWORD}" --project ${PROJECTID} "${USERNAME}"
$ openstack role add --project ${PROJECTNAME} --user ${USERNAME} _member_
$ openstack role add --project ${PROJECTNAME} --user ${USERNAME} reader

      Repeat this step for additional users required in the Level3SystemAdmin group.

Postrequisites

Each system administrator user created should now be able to:

Create End Users

After setting up your system administrators, use a Level1SystemAdmin system administrator to configure ‘end users’.

In the following example, creating end users consists of:

  • Create a general end user kubernetes ClusterRole with restricted kubernetes capabilities.

  • For one or more specific end user groups:

    • Create an LDAP group;

    • You can disable the SSH access for this LDAP group (i.e., restricting these end users to only use remote CLIs / APIs / GUIs);

    • Create a Kubernetes namespace for the group;

    • Bind the general end user kubernetes cluster role to the LDAP group for this kubernetes namespace,

    • Create one or more LDAP users in this LDAP group.

Prerequisites

  • You should already have created a system administrator.

  • You need to perform this procedure using the Level1SystemAdmin system administrator.

Procedure

  1. Login to the active controller as a Level1SystemAdmin system administrator, joefulladmin in this example.

    Use either a local console or SSH.

  2. Use the local_starlingxrc to setup StarlingX environment variables and to setup your keystone user’s authentication credentials.

    $ source local_starlingxrc

Enter the password to be used with keystone user joefulladmin:
Created file /home/joefulladmin/joefulladmin-openrc

  3. Use the oidc-auth to authenticate via OIDC/LDAP for kubernetes CLI.

    $ oidc-auth
Using "joefulladmin" as username.
Password:
Successful authentication.
Updated /home/joefulladmin/.kube/config.

  4. Create a directory for temporary files for setting up users and groups.

    $ mkdir /home/joefulladmin/users

  5. Create a general end user kubernetes ClusterRole with restricted kubernetes authorization privileges.

    $ cat << EOF > /home/joefulladmin/users/GeneralEndUser-ClusterRole.yml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
   name: GeneralEndUser
rules:
# For the core API group (""), allow full access to all resource types
# EXCEPT for resource policies (limitranges and resourcequotas) only allow read access
-      apiGroups: [""]
   resources: ["bindings", "configmaps", "endpoints", "events", "persistentvolumeclaims", "pods", "podtemplates", "replicationcontrollers", "secrets", "serviceaccounts", "services"]
   verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]
-      apiGroups: [""]
   resources: [ "limitranges", "resourcequotas" ]
   verbs: ["get", "list"]
# Allow full access to all resource types of the following explicit list of apiGroups.
# Notable exceptions here are:
#     ApiGroup                      ResourceTypes
#     -------                       -------------
#     policy                        podsecuritypolicies, poddisruptionbudgets
#     networking.k8s.io             networkpolicies
#     admissionregistration.k8s.io  mutatingwebhookconfigurations, validatingwebhookconfigurations
#
-      apiGroups: ["apps", "batch", "extensions", "autoscaling", "apiextensions.k8s.io", "rbac.authorization.k8s.io"]
   resources: ["*"]
   verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]
# Cert Manager API access
-      apiGroups: ["cert-manager.io", "acme.cert-manager.io"]
   resources: ["*"]
   verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]
EOF

$ kubectl apply -f /home/joefulladmin/users/GeneralEndUser-ClusterRole.yml

  6. For one or more specific end user groups, create an LDAP group, Kubernetes namespace and one or more LDAP users.

    1. Create a new local LDAP group for the end user group.

      $ sudo ldapaddgroup ABC-EndUsers

    2. Optional step: Disallow this local LDAP group from using SSH.

      Users of this LDAP group can only use the remote kubernetes API/CLI/GUI. Update the /etc/security/group.conf with LDAP group mappings.

      Note

      If it is AIO-DX controller configuration, disallow this local LDAP group on both controllers.

      $ sudo sed -i '$ a\*;*;%ABC-EndUsers;Al0000-2400;denyssh' /etc/security/group.conf

    3. Create a kubernetes namespace for the end user group.

      $ kubectl create namespace abc-ns

      1. Bind the GeneralEndUser role to this LDAP group for this kubernetes namespace.

        $ cat << EOF > /home/joefulladmin/users/ABC-EndUsers-rolebinding.yml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
   name: ABC-EndUsers
   namespace: abc-ns
subjects:
-     kind: Group
   name: ABC-EndUsers
   apiGroup: rbac.authorization.k8s.io
roleRef:
   kind: ClusterRole
   name: GeneralEndUser
   apiGroup: rbac.authorization.k8s.io
EOF

$ kubectl apply -f  /home/joefulladmin/users/ABC-EndUsers-rolebinding.yml

    4. Create one or more LDAP users for the end user group.

      $ sudo ldapusersetup -u steveenduser
Password:
Successfully added user steveenduser to LDAP
Successfully set password for user steveenduser
Warning : password is reset, user will be asked to change password at login
Successfully modified user entry uid=steveenduser,ou=People,dc=cgcs,dc=local in LDAP
Updating password expiry to 90 days
Successfully modified user entry uid=steveenduser,ou=People,dc=cgcs,dc=local in LDAP
Updating password expiry to 2 days

$ sudo ldapaddusertogroup steveenduser ABC-EndUsers

    5. Repeat the Create one or more LDAP users for the end user group step for the next user in this end user group.

  7. Repeat the For one or more specific end user groups, create an LDAP group, kubernetes namespace and one or more LDAP users step for the next end user group.

Postrequisites

The end user created is able to, optionally, use SSH on the system to execute kubernetes CLI commands to manage the hosted containerized application and execute Linux commands. See section: End Users - Test Local Access using SSH or Kubernetes CLI.

Note

More setup is required for end user to use remote CLIs/GUIs, see section Remote Access.

End Users - Test Local Access using SSH or Kubernetes CLI

After creating end users, test their access to the the Kubernetes commands / resources and linux access.

Prerequisites

  • You should already have created at least one end user.

  • You need to perform this procedure using an end user.

Procedure

  1. Login to the active controller as an end user, steveenduser in this example.

    Use either a local console or SSH.

  2. Test access to linux commands (admin and non-admin) using the following commands:

    # Creating user requires sudo

$ sudo ldapusersetup -u johnsmith
steveenduser is not allowed to run sudo on controller-0.  This incident will be reported.

# Listing IP interfaces does not require admin privileges

$ ip link show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: enp0s3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP mode DEFAULT group default qlen 1000
link/ether 08:00:27:39:06:4e brd ff:ff:ff:ff:ff:ff
3: enp0s8: <BROADCAST,MULTICAST> mtu 1500 qdisc fq_codel state DOWN mode DEFAULT group default qlen 1000
link/ether 08:00:27:38:8b:7c brd ff:ff:ff:ff:ff:ff
...

  3. Test access to kubernetes commands / resources using the following steps:

    1. Use kubeconfig-setup to setup KUBECONFIG for local environment.

      $ kubeconfig-setup
$ source ~/.profile

    2. Use oidc-auth to authenticate through OIDC/LDAP.

      $ oidc-auth
Using "steveenduser" as username.
Password:
Successful authentication.
Updated /home/johnsmith/.kube/config .

    3. Use kubectl to test access to kubernetes commands / resources (admin and non-admin).

      # Displaying anything in 'kube-system' namespace requires 'cluster-admin' privileges

$ kubectl -n kube-system get secrets
Error from server (Forbidden): secrets is forbidden: User "steveenduser" cannot list resource "secrets" in API group "" in the namespace "kube-system"

# Should be able to display resources in his own namespace, 'ABC-ns'

$ kubectl -n abc-ns get all
NAME                 TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
service/kubernetes   ClusterIP   10.96.0.1    <none>        443/TCP   3d9h

  4. Test access to StarlingX commands / resources.

    $ source local_starlingxrc
Enter the password to be used with Keystone user steveenduser:
Created file /home/johnsmith/steveenduser-openrc

$ system host-list
Must provide Keystone credentials or user-defined endpoint and token, error was: The request you have made requires authentication. (HTTP 401) (Request-ID: req-0feb292f-d649-4d9f-8e60-f63643265207)

Postrequisites

Setup remote access for any end users requiring remote access. See Remote Access.

Remote Access

This section provides a procedure for a system administrator to collect system and user information required for a user to connect remotely to StarlingX. It also provides procedures for system administrators and end users to remotely connect to StarlingX CLIs, kubernetes CLIs and GUIs.

System Administrator - Collect System Information for Remote User Access

This procedure collects up a variety of data requried for a user to remotely interface with StarlingX system.

The following data needs to be collected:

  • The public certificate of the Root CA that signed the certificates of the StarlingX system.

    • the remote user needs to update the remote system to trust this certificate.

  • Kubernetes environment data for the StarlingX system.

  • StarlingX environment data for the StarlingX system.

Procedure

  1. Login to the active controller as a Level1SystemAdmin system administrator, joefulladmin in this example.

    Use either a local console or SSH.

  2. Use local_starlingxrc to setup StarlingX environment variables and to setup your keystone user’s authentication credentials.

    $ source local_starlingxrc
Enter the password to be used with Keystone user joefulladmin:
Created file /home/joefulladmin/joefulladmin-openrc

  3. Use kubeconfig-setup to setup KUBECONFIG for local environment and use oidc-auth to setup OIDC/LDAP authentication credentials.

    $ kubeconfig-setup
$ source ~/.profile

$ oidc-auth
Using "joefulladmin" as username.
Password:
Successful authentication.
Updated /home/joefulladmin/.kube/config .

  4. Create a directory for storing information for remote users.

    $ mkdir ~/stx-remote-access-info

  5. Get public certificate of the Root CA that signed the certificates of the StarlingX system.

    $ kubectl get secret system-local-ca -n cert-manager -o=jsonpath='{.data.ca\.crt}' | base64 --decode > ~/stx-remote-access-info/stx.ca.crt

  6. Get the Kubernetes environment data for the StarlingX system.

    $ OAMIP=$(system oam-show | egrep "(oam_ip|oam_floating_ip)" | awk '{print $4}')
$ touch ~/stx-remote-access-info/kubeconfig
$ kubectl config --kubeconfig ~/stx-remote-access-info/kubeconfig set-cluster stx-cluster --server=https://${OAMIP}:6443 --embed-certs --certificate-authority=~/stx-remote-access-info/stx.ca.crt
$ kubectl config --kubeconfig ~/stx-remote-access-info/kubeconfig set-context YOURUSERNAMEHERE@stx-cluster --cluster=stx-cluster --user YOURUSERNAMEHERE
$ kubectl config --kubeconfig ~/stx-remote-access-info/kubeconfig use-context YOURUSERNAMEHERE@stx-cluster

  7. Get the StarlingX environment data for the StarlingX system.

    $ OAMIP=$(system oam-show | egrep "(oam_ip|oam_floating_ip)" | awk '{print $4}')
$ PROJECTNAME="admin"
$ PROJECTID=`openstack project list | grep ${PROJECTNAME} | awk '{print $2}'`

$ cat <<EOF > ~/stx-remote-access-info/starlingxrc
#!/usr/bin/env bash
#
export OS_AUTH_URL=https://${OAMIP}:5000/v3
export OS_PROJECT_ID=${PROJECTID}
export OS_PROJECT_NAME=${PROJECTNAME}
export OS_USER_DOMAIN_NAME="Default"
export OS_PROJECT_DOMAIN_ID="default"
export OS_PROJECT_DOMAIN_NAME=""
export OS_USERNAME=YOURUSERNAMEHERE
echo "Please enter your OpenStack Password for project \$OS_PROJECT_NAME as user \$OS_USERNAME: "
read -sr OS_PASSWORD_INPUT
export OS_PASSWORD=\$OS_PASSWORD_INPUT
export OS_REGION_NAME=${OS_REGION_NAME}
export OS_INTERFACE=public
export OS_IDENTITY_API_VERSION=3
export OS_CACERT=./stx-remote-access-info/stx.ca.crt
EOF

  8. Package up the following files for a remote user to use when setting up his remote access on his system.

    $ cd ~
$ tar cvf stx-remote-access-info.tar ./stx-remote-access-info

Postrequisites

For any user requiring remote access:

  • securely send them the stx-remote-access-info.tar file.

  • have them follow the procedures for setting up remote access. See Remote Access.

System Administrator - Access Horizon GUI

Access the StarlingX Horizon GUI using your browser.

This procedure should be performed on your system that has a web browser.

Prerequisites

  • A system with a web browser.

  • You need to have the stx-remote-access.tar file from your system administrator, containing system information related to your StarlingX system.

Procedure

  1. Update your web browser to ‘trust’ the StarlingX CA certificate.

    1. Extract the files from the stx-remote-access-info.tar file from your StarlingX system administrator.

      $ cd ~
$ tar xvf ./stx-remote-access-info.tar

# The StarlingX CA Certificate is here:
$ ls ./stx-remote-access-info/stx.ca.crt

    2. Follow your web browser’s instructions to add ~/stx-remote-access-info/stx.ca.crt to the list of trusted CAs for your browser.

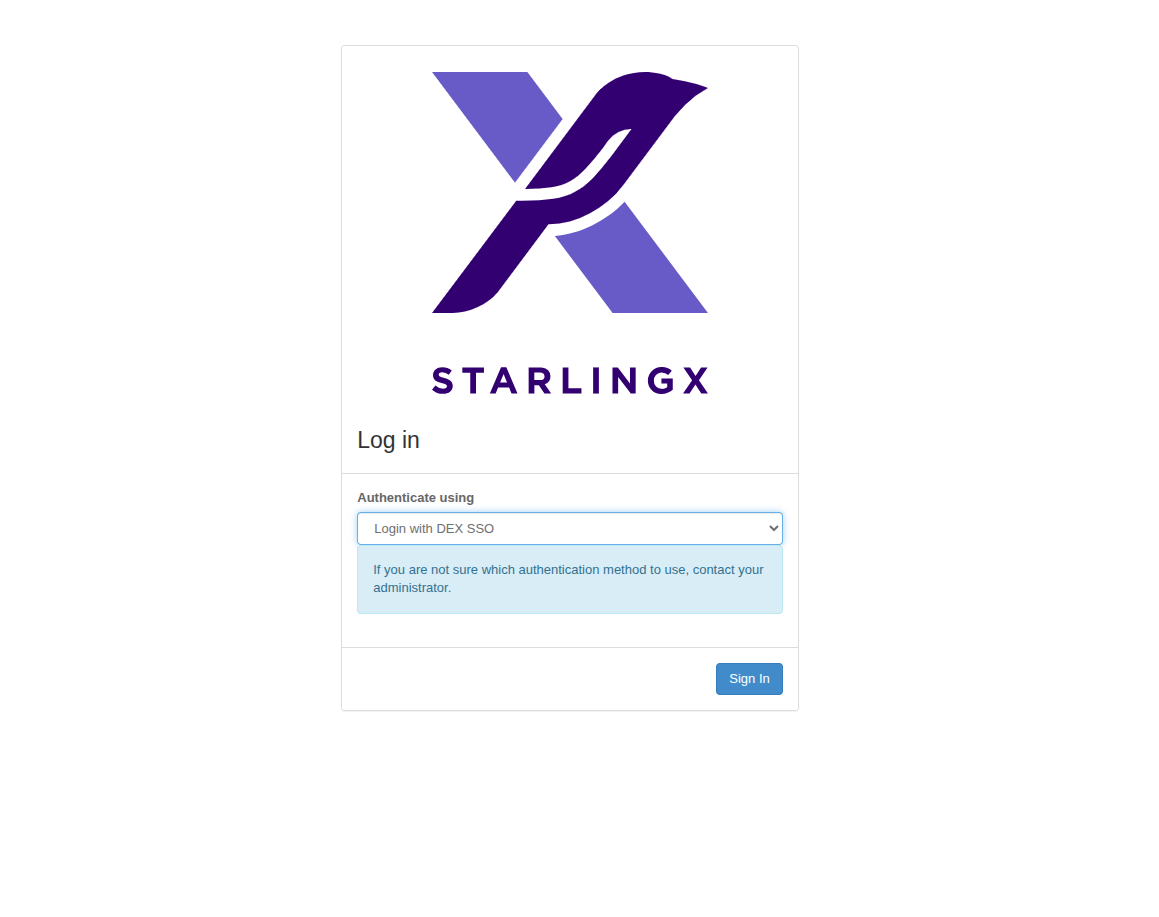

  2. Open your web browser at address https://<OAM-Floating-IP-Address>:8443

    Login with your keystone account’s ‘username’ and ‘password’.

System Administrator - Configure System Remote CLI & Kubernetes Remote CLI

Configure the StarlingX remote CLI and kubernetes remote CLI on your Linux-based system so that you can remotely access your StarlingX system through remote CLI commands.

This procedure should be performed on your Linux-based system.

Prerequisites

  • You need to have a Linux-based system with python installed and either with Docker installed or ‘sudo’ capability to install Docker.

  • You need to have the stx-remote-access.tar file from your system administrator, containing system information related to your StarlingX system.

Procedure

  1. Install Docker on your Linux-based system. The following example is for ubuntu.

    # Add Docker's official GPG key:
$ sudo apt-get update
$ sudo apt-get install ca-certificates curl
$ sudo install -m 0755 -d /etc/apt/keyrings
$ sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg -o /etc/apt/keyrings/docker.asc
$ sudo chmod a+r /etc/apt/keyrings/docker.asc

# Add the repository to Apt sources:
$ echo "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] https://download.docker.com/linux/ubuntu \
$(. /etc/os-release && echo "$VERSION_CODENAME") stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
$ sudo apt-get update

# Install Docker Packages
$ sudo apt-get install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

# Verify that the Docker Engine installation is successful by running the hello-world image.
$ sudo docker run hello-world

# Manage docker as non-root user
$ sudo groupadd docker
$ sudo usermod -aG docker $USER
$ sudo reboot

  2. Download and extract the StarlingX remote CLI tar file from the StarlingX site.

    $ cd ~
$ wget https://mirror.starlingx.cengn.ca/mirror/starlingx/master/debian/monolithic/latest_build/outputs/remote-cli/stx-remote-cli-1.0.tgz
$ tar xvf stx-remote-cli-1.0.tgz

  3. Extract the StarlingX system information from the stx-remote-access-info.tar file from your StarlingX system administrator.

    # Files from your StarlingX System Administrator
$ ls ~/stx-remote-access-info.tar

$ cd ~/remote_cli
$ tar xvf ~/stx-remote-access-info.tar

  4. Update the starlingxrc file.

    $ vi ~/remote_cli/stx-remote-access-info/starlingxrc
   // and change YOURUSERNAMEHERE to your StarlingX LDAP Username, everywhere in file

  5. Update the KUBECONFIG file.

    $ vi ~/remote_cli/stx-remote-access-info/kubeconfig
   // and change YOURUSERNAMEHERE to your StarlingX LDAP Username, everywhere in file

  6. Configure the containerized remote CLI clients.

    $ ./configure_client.sh -t platform -r ${HOME}/remote_cli/stx-remote-access-info/starlingxrc -k ${HOME}/remote_cli/stx-remote-access-info/kubeconfig -w ${HOME}/remote_cli -p docker.io/starlingx/stx-platformclients:stx.9.0-v1.5.13

Postrequisites

System Administrator - Access System Remote CLI & Kubernetes Remote CLI

Access your StarlingX system through the StarlingX remote CLI and kubernetes remote CLI on your Linux-based system.

Prerequisites

You need to have a Linux-based system that has configured the StarlingX remote CLI and kubernetes remote CLI. See section: System Administrator - Configure System Remote CLI & Kubernetes Remote CLI.

Procedure

  1. Source the remote client for the StarlingX platform.

    $ cd ~/remote_cli

$ source ./remote_client_platform.sh

  2. Test the StarlingX remote CLI commands.

    $ cd ~/remote_cli

$ system host-list

$ fm alarm-list

  3. Test kubernetes remote CLI commands.

    $ cd ~/remote_cli

$ oidc-auth -u <LDAP-USERNAME> -p <LDAP-PASSWORD> -c <OAM-FLOATING-IP>

$ kubectl get all

End User - Configure Kubernetes Remote CLI

Configure the kubernetes remote CLI on your Linux-based system to enable access to the StarlingX system kubernetes remote CLI commands.

This procedure should be performed on your Linux-based system.

Prerequisites

  • You need to have a Linux-based system with python installed.

  • You need to have the stx-remote-access.tar file from your system administrator, containing system information related to your StarlingX system.

Procedure

  1. Install the kubectl client CLI on the host.

    Follow the instructions on Install and Set Up kubectl on Linux <https://kubernetes.io/docs/tasks/tools/install-kubectl-linux/>.

    The example below can be used for Ubuntu.

    $ sudo curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl"
$ sudo install -o root -g root -m 0755 kubectl /usr/local/bin/kubectl

  2. Download the oidc-auth shell script from StarlingX site and install python mechanize.

    $ wget`https://mirror.starlingx.cengn.ca/mirror/starlingx/master/debian/monolithic/latest_build/outputs/remote-cli/ <https://mirror.starlingx.cengn.ca/mirror/starlingx/master/debian/monolithic/latest_build/outputs/remote-cli/stx-remote-cli-1.0.tgz>`__\ oidc-auth
$ chmod a+rx oidc-auth

$ sudo apt install python3-pip
$ sudo pip install mechanize

  3. Extract the StarlingX system information from the stx-remote-access-info.tar file from your StarlingX system administrator.

    # Files from your StarlingX System Administrator
$ ls ~/stx-remote-access-info.tar

$ tar xvf ~/stx-remote-access-info.tar

  4. Update the KUBECONFIG file.

    $ mkdir ~/.kube
$ cp ~/stx-remote-access-info/kubeconfig ~/.kube/config
$ vi ~/.kube/config
   // and change YOURUSERNAMEHERE to your StarlingX LDAP Username, everywhere in file

# Add ~/stx-remote-access-info/stx.ca.crt to the list of Trusted CA
#       e.g. commands shown for ubuntu below
$ sudo cp ~/stx-remote-access-info/stx.ca.crt /usr/local/share/ca-certificates
$ sudo update-ca-certificates

# Authenticate with OIDC/LDAP on StarlingX ... and token will be put in ~/.kube/config
$ ./oidc-auth -u <StarlingX-LDAP-Username> -c <OAM-FLOATING-IP>

Postrequisites

Access the kubernetes remote CLI.

See End User - Access Kubernetes Remote CLI.

End User - Access Kubernetes Remote CLI

Access your StarlingX system through kubernetes remote CLI on your Linux-based system.

Prerequisites

You need to have a Linux-based system that has configured the Kubernetes remote CLI. See section: End User - Configure Kubernetes Remote CLI.

Procedure

  1. Update your OIDC token in your KUBECONFIG.

    $ ./oidc-auth -u <StarlingX-LDAP-Username> -c <OAM-FLOATING-IP>

  2. Test kubernetes remote CLI commands.

    $ kubectl get all

Install the Kubernetes Dashboard

You can optionally use the Kubernetes Dashboard web interface to perform cluster management tasks.

About this task

Kubernetes Dashboard allows you to perform common cluster management tasks such as deployment, resource allocation, real-time and historic status review, and troubleshooting.

Prerequisites

You must have cluster-admin RBAC privileges to install Kubernetes Dashboard.

Procedure

  1. Create a namespace for the Kubernetes Dashboard.

    ~(keystone_admin)]$ kubectl create namespace kubernetes-dashboard

  2. Create a certificate for use by the Kubernetes Dashboard.

    Note

    This example uses a self-signed certificate. In a production deployment, the use of a using a certificate signed by a trusted Certificate Authority is strongly recommended.

    1. Create a location to store the certificate.

      ~(keystone_admin)]$ cd /home/sysadmin
~(keystone_admin)]$ mkdir -p /home/sysadmin/kube/dashboard/certs

    2. Create the certificate.

      ~(keystone_admin)]$ openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout /home/sysadmin/kube/dashboard/certs/dashboard.key -out /home/sysadmin/kube/dashboard/certs/dashboard.crt -subj "/CN=<FQDN>"

      where: <FQDN>

      The fully qualified domain name for the StarlingX cluster’s OAM floating IP.

    3. Create a kubernetes secret for holding the certificate and private key.

      ~(keystone)admin)]$ kubectl -n kubernetes-dashboard create secret generic kubernetes-dashboard-certs --from-file=tls.crt=/home/sysadmin/kube/dashboard/certs/dashboard.crt --from-file=tls.key=/home/sysadmin/kube/dashboard/certs/dashboard.key

  3. Configure the kubernetes-dashboard manifest:

    1. Download the recommended.yaml file.

      ~(keystone_admin)]$ wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0/aio/deploy/recommended.yaml

    2. Edit the file.

      Comment out the auto-generate-certificates argument and add the tls-cert-file and tls-key-file arguments.

      The updates should look like:

      ...
args:
    # - --auto-generate-certificates
    - --namespace=kubernetes-dashboard
    - --tls-cert-file=/tls.crt
    - --tls-key-file=/tls.key
...

  4. Apply the kubernetes dashboard recommended.yaml manifest.

    ~(keystone_admin)]$ kubectl apply -f recommended.yaml

  5. Patch the kubernetes dashboard service to type=NodePort and port=32000.

    ~(keystone_admin)]$ kubectl patch service kubernetes-dashboard -n kubernetes-dashboard -p '{"spec":{"type":"NodePort","ports":[{"port":443, "nodePort":32000}]}}'

  6. Test the Kubernetes Dashboard deployment.

    The Kubernetes Dashboard is listening at port 32000 on the machine defined above for StarlingX cluster’s OAM floating IP.

    1. Access the dashboard at https://<fqdn>:32000

      Because the certificate created earlier in this procedure was not signed by a trusted CA, you will need to acknowledge an insecure connection from the browser.

    2. Select the Kubeconfig option for signing in to the Kubernetes Dashboard. Note that typically your kubeconfig file on a remote host is located at $HOME/.kube/config . You may have to copy it to somewhere more accessible.

    You are presented with the Kubernetes Dashboard for the current context (cluster, user and credentials) specified in the kubeconfig file.
